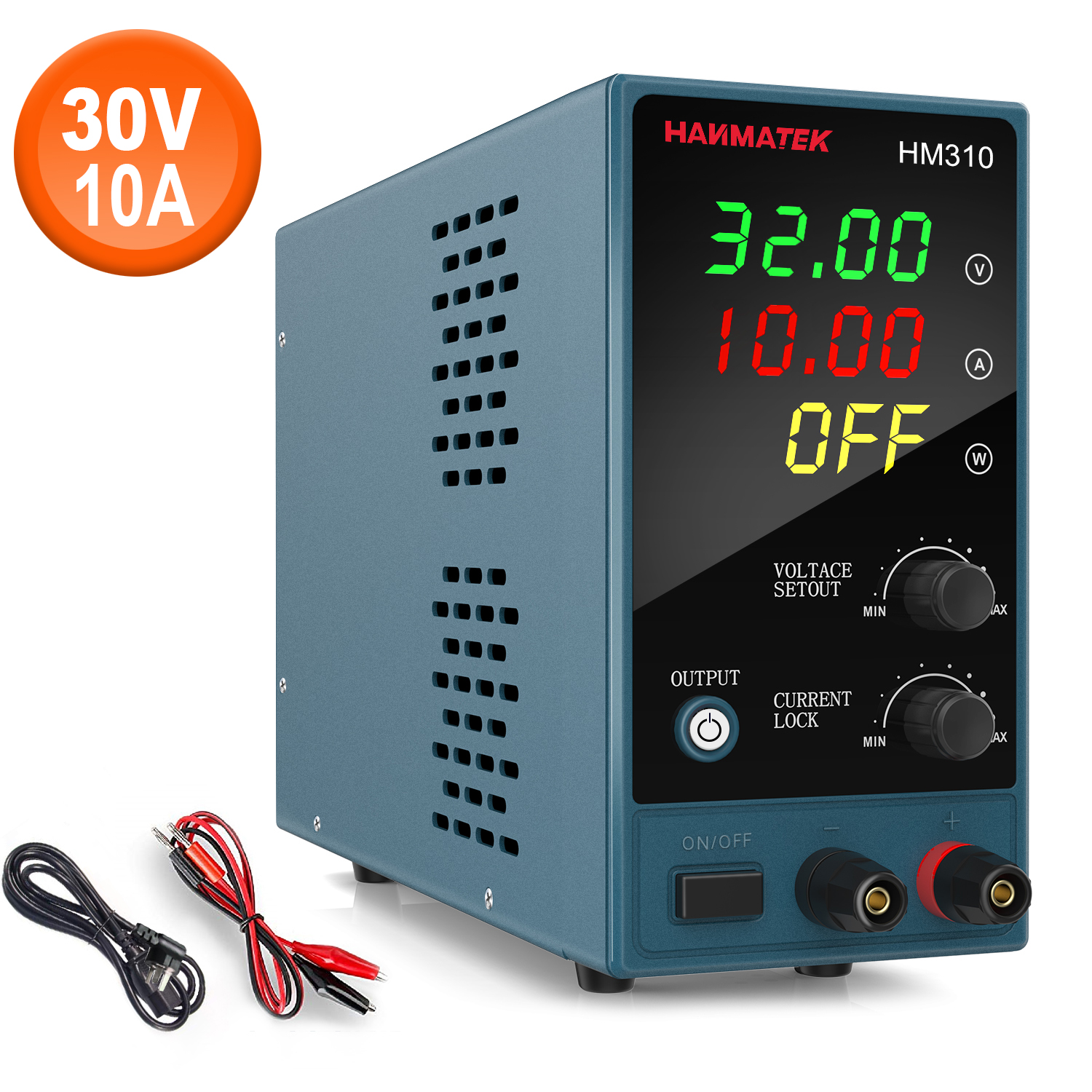

DC Power Supply 30V10A HM310

1）Voltage and current can be preset

2）Power display

3）Unique front output on-off one-key switch control

4）Turn on or off the external SETOUT function when power-on output

5）LOCK lock function to prevent accidental touch

6）Display the decimal point automatic carry function

7）Low noise, low ripple

8）High-quality coding switch control

9）Powerful protection functions for over voltage, over current, over power and over temperature

10）Mini size and lighter weight



Description

 Voltage
 Load regulation rate≤0.1%+5mV
 Power regulation rate≤0.01%+5mV
 Set resolution10mV
 Setting accuracy≤0.1%±1  digits
 Readback resolution10mV
 Readback accuracy≤0.1%±1  digits
 Ripple10mVrms
 Electric current
 Load regulation rate≤0.2%+3mA
 Power regulation rate≤0.2%+3mA
 Set resolution1mA
 Setting accuracy≤0.2%±3mA
 Readback resolution1mA
 Readback accuracy≤0.2%±3digits
 Ripple8mVrms
 OVPVmax+2V
 Maximum voltageVmax±0.2%
 OCPCmax+1A
 Maximum currentCmax±0.2%
 Working conditionsTemperature 0～40℃ Relative humidity: ≤80%RH
 Storage conditionsTemperature -20～60℃ Relative humidity: ≤80%RH
 Cooling methodWind cooling
 Weight1.95KG

 Size(Bare metal)              80*150*230(MM)
