1、110MHz bandwidth, 1GSa/s real-time sampling rate, dual-channel, 2ns/div~1000s/div time base range;
2、The storage depth (the record length of each acquired waveform) is not less than 10K sampling points;

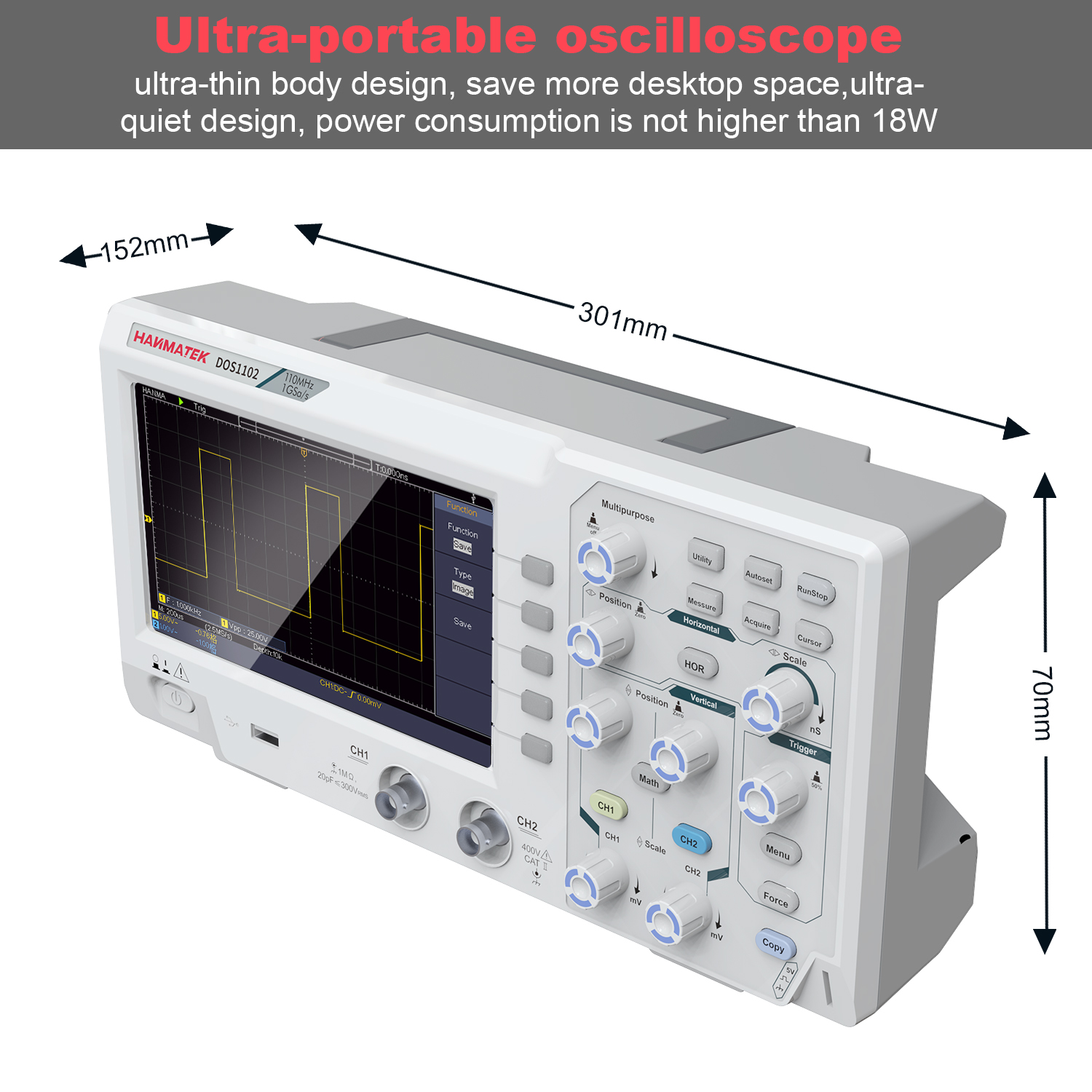

3、Ultra-portable oscilloscope, the volume is not more than 301 x 152 x 70 mm, the ultra-thin body design, the thickness is not more than 70 mm, and the weight is not more than 1.1kg, saving more desktop space, ultra-quiet design, power consumption not higher than 18W;
4、No less than 7 inches TFT (true color) LCD screen, 65535 colors, resolution no less than 800 × 480 pixels;
5、Store waveforms at least 16 groups; with U disk storage function;
6、With automatic range function, support horizontal, vertical, single waveform/multi-waveform tracking;
7、There are many probe attenuation multiples: 1X, 10X, 100X, 1000X, four;
8、Support cursor measurement, cursor mode is no less than voltage difference (△V), time difference (△T), time difference & voltage difference (△V), automatic cursor four modes;
9、Built-in 6-digit hardware frequency counter, which can measure 2Hz ~ 20MHz;
10、With current measurement function, measurement range: 100.0mA/V ~ 1KA/V;
11、USB Device & Host interface;
12、With 30 kinds of automatic measurement functions (parameters are displayed in Chinese, easy for students to understand), can customize the measurement menu
13、With waveform interception function, it can seamlessly connect with the signal generator of the same brand.
14、Support LABVIEW communication and secondary development.
Characteristic | Description | |||||
Model | DOS1102 | |||||
Bandwidth | 110 MHz | |||||
Channel | 2 channels | |||||
Sampling | Sampling method | Normal sampling, peak detection, average | ||||
Highest real-time sampling rate | 1 GS/s | |||||
Enter | Input coupling | DC, AC, ground | ||||
Input resistance | 1 MΩ±2%, in parallel with 20 pF±5 pF | |||||
Probe attenuation coefficient | 1X,10X,100X,1000X | |||||
Maximum input voltage | 400 V (DC + AC peak) | |||||
Isolation between channels | 50 Hz: 100 : 1 | |||||
10 MHz: 40 : 1 | ||||||
Time delay between channels (typical) | 150 ps | |||||
Bandwidth limit | 20 MHz,Full bandwidth | |||||
Level | Sampling rate range | 0.5 S/s~1 GS/s | ||||
Waveform interpolation | (sinx)/x | |||||
Maximum storage depth | 10K | |||||
Sweep speed range (S/div) | 2 ns/div~1000 s/div | |||||
Step by 1~2~5 system | ||||||
Time base accuracy | ±100 ppm | |||||
Time interval (△T) measurement accuracy (DC~100MHz) | single: | |||||
±(1 sampling interval time + 100 ppm × reading + 0.6 ns) | ||||||
>16 averages: | ||||||
±(1 sampling interval time + 100 ppm × reading + 0.4 ns) | ||||||
Vertical | Analog to digital converter (A/D) | 8-bit resolution, simultaneous sampling of two channels. | ||||
Sensitivity (Volt/div) range | 5 mV/div~5 V/div | |||||
Displacement range | ±2 V (5 mV/div – 100 mV/div) | |||||
±50 V (200 mV/div – 5 V/div) | ||||||
Analog bandwidth | 100 MHz | |||||
Single bandwidth | Full Bandwidth | |||||
Low frequency response (AC coupling, -3dB) | ≥10Hz (On BNC) | |||||
Rise time (typical on BNC) | ≤ 3.18 ns | |||||
DC gain accuracy | ±3% | |||||
DC measurement accuracy (average value) | The voltage difference (△V) between any two points on the waveform after averaging the captured ≥16 waveforms: | |||||
Sampling method) | ±(3% of reading + 0.05 division). | |||||
Turn on/off waveform inversion | ||||||
Measuring | Cursor measurement | Voltage difference between cursors (△V), time difference between cursors (△T) | ||||
Automatic measurement | Period, frequency, average value, peak-to-peak value, root mean square value, maximum value, minimum value, top value, bottom value, amplitude, overshoot, preshoot, rise time, fall time, positive pulse width, negative pulse width, Positive duty cycle, negative duty cycle, delay A->B | |||||
delay A->B | ||||||
、Cycle RMS, cursor RMS, duty cycle, phase | ||||||
Computation | Add, subtract, multiply, divide, FFT | |||||
Store waveform | 16 groups of waveforms | |||||
Li Shayu Graphics | bandwidth | Full Bandwidth | ||||
phase difference | ±3 degrees | |||||
Communication Interface | USB 2.0, support U disk storage | |||||
Frequency meter | stand by |
