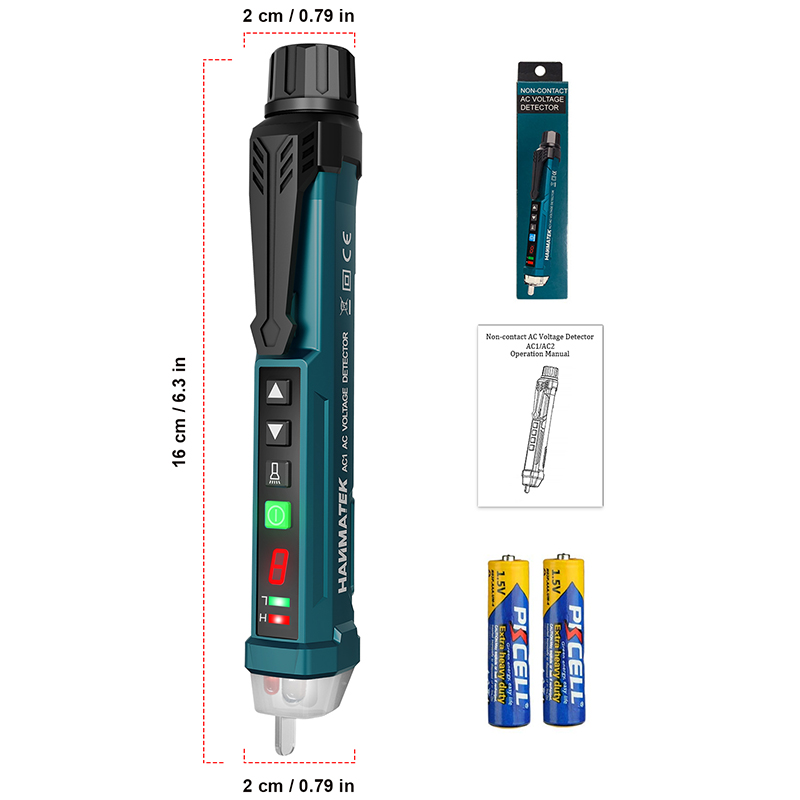

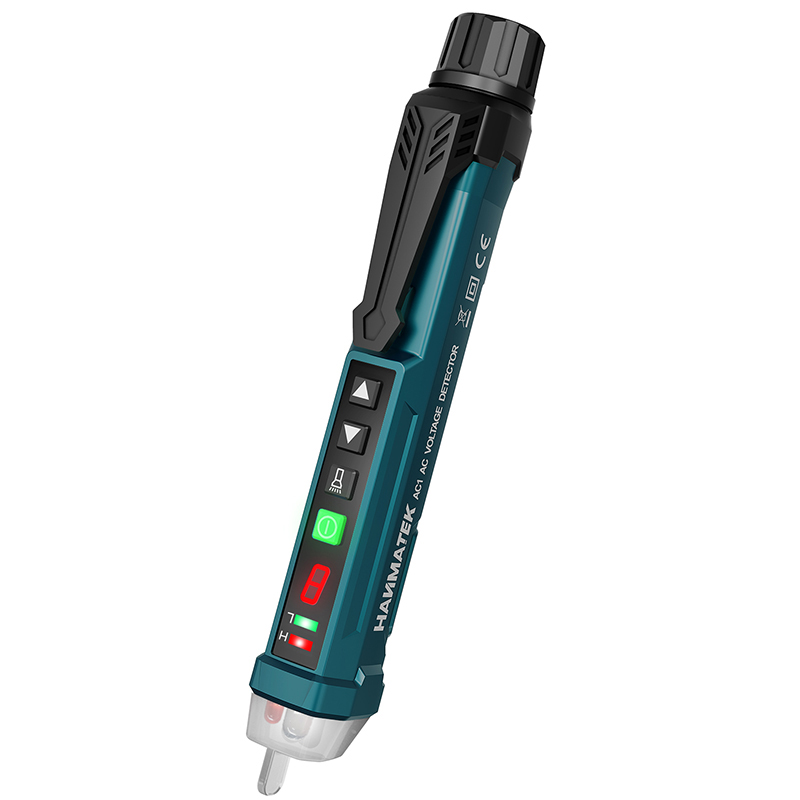

9 Gear Adjustable Smart Test Pencil AC1
1、AC voltage sensing range 12V-1000V
2、9 levels of sensitivity adjustable
3、Digital display sensitivity level
4、Flashlight function
5、Automatic shut-down
6、Resistance to 1 meter drop
7、Automatic shut-down
8、Sound and light alarm indication function
Description
Technical index | AC1 (lighting version) | AC2 (laser version) |
AC voltage range: | About 12 ~1000V | About 12 ~1000V |
Sensitivity adjustment digital display | 1-9 digital adjustment | |
Frequency | 50 Hz /60Hz | |
Alarm method | Audible alarm | |
Flashlight | White LED lighting | none |
Laser | none | Red laser |
Automatic shut-down | √ | √ |
Low voltage indication | √ | √ |
Zero line judgment | Sound (sound of different frequencies) and LED lights | |
NCV sensitivity | Automatically select 3 kinds of sensitivity (high, medium, low) | |
NCV sensitivity indication method | The meter uses different frequency alarm sounds and different color LEDs to indicate different sensitivity of high, medium and low | |
| General parameters | ||
power supply | 2×1.5V AAA battery | |
Product Size | 129*20*29 mm | |
Product weight | About 76g | |
Security Level | CE CAT.II 1000V /CAT.III 600V | |
Operating temperature | 0~40 degrees | |
Storage temperature | -10~50 degrees | |
Altitude | <2000m | |
