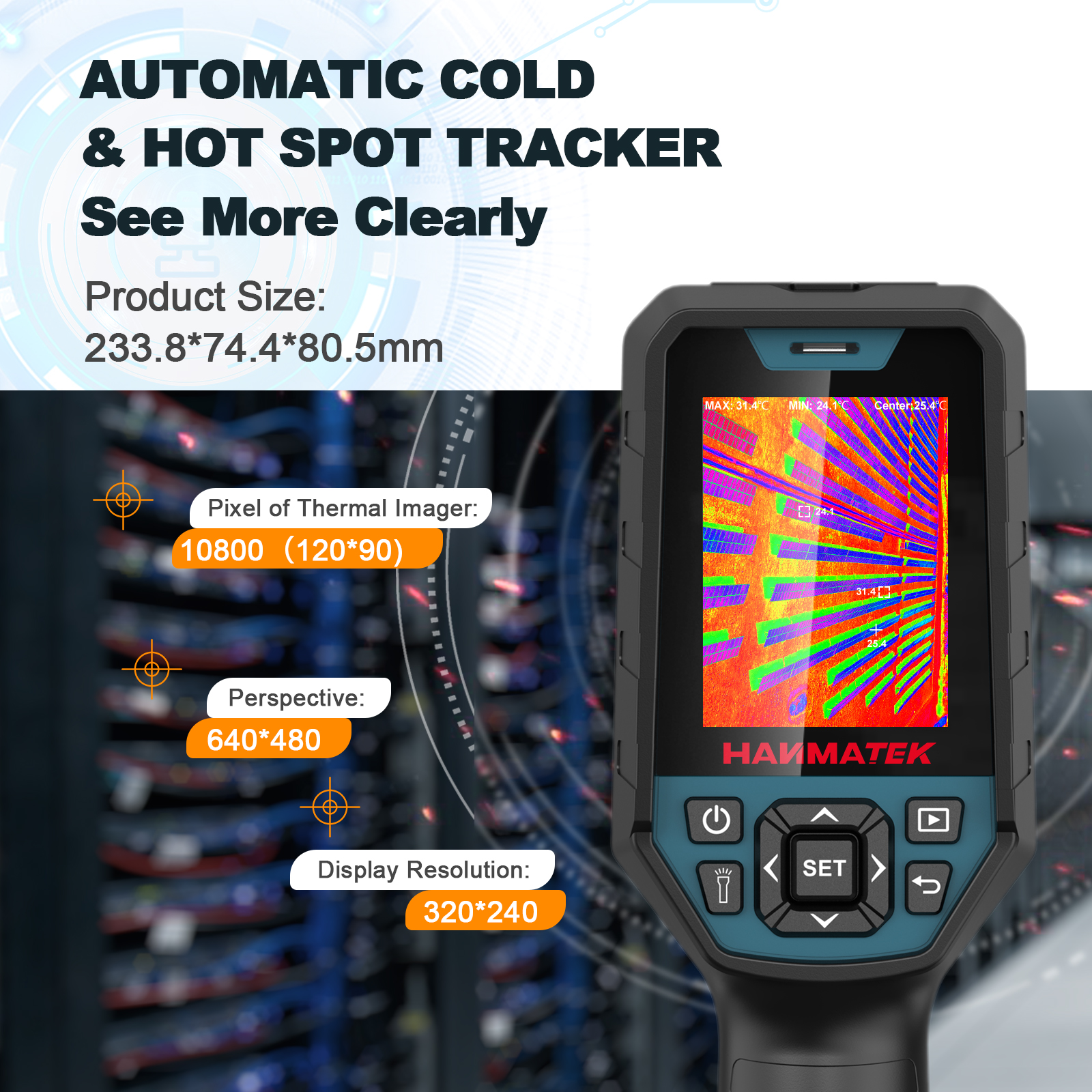

1、Thermal imaging pixel 10800 (120*90)
2、 Temperature range -20°C ~400°C
3、 Six colour-tuning imaging modes
4、 With visible light lens
5、 2.8" TFT LCD colour screen
6, High and low temperature three-colour light alarm
7, Eight languages operation and upper computer interface
8, IP65 waterproof and dustproof grade
9、 Type-C communication interface
Product Technical Parameters | ||
Product Model | Ti120 | |
Sensor | Uncooled infrared focal plane thermal imaging sensor 120*90 | |
Pixel size | 17μm | |
Infrared spectral bandwidth | 8~14μm | |
Thermal imaging pixels | 10800(120*90) | |
Thermal imaging sensitivity | ≤60mK | |
Field of View (FOV) | 50°(H)*38°(V) | |
Instantaneous field of view (FOV) | 7.3mrad | |
Frame Rate | ≤25Hz | |

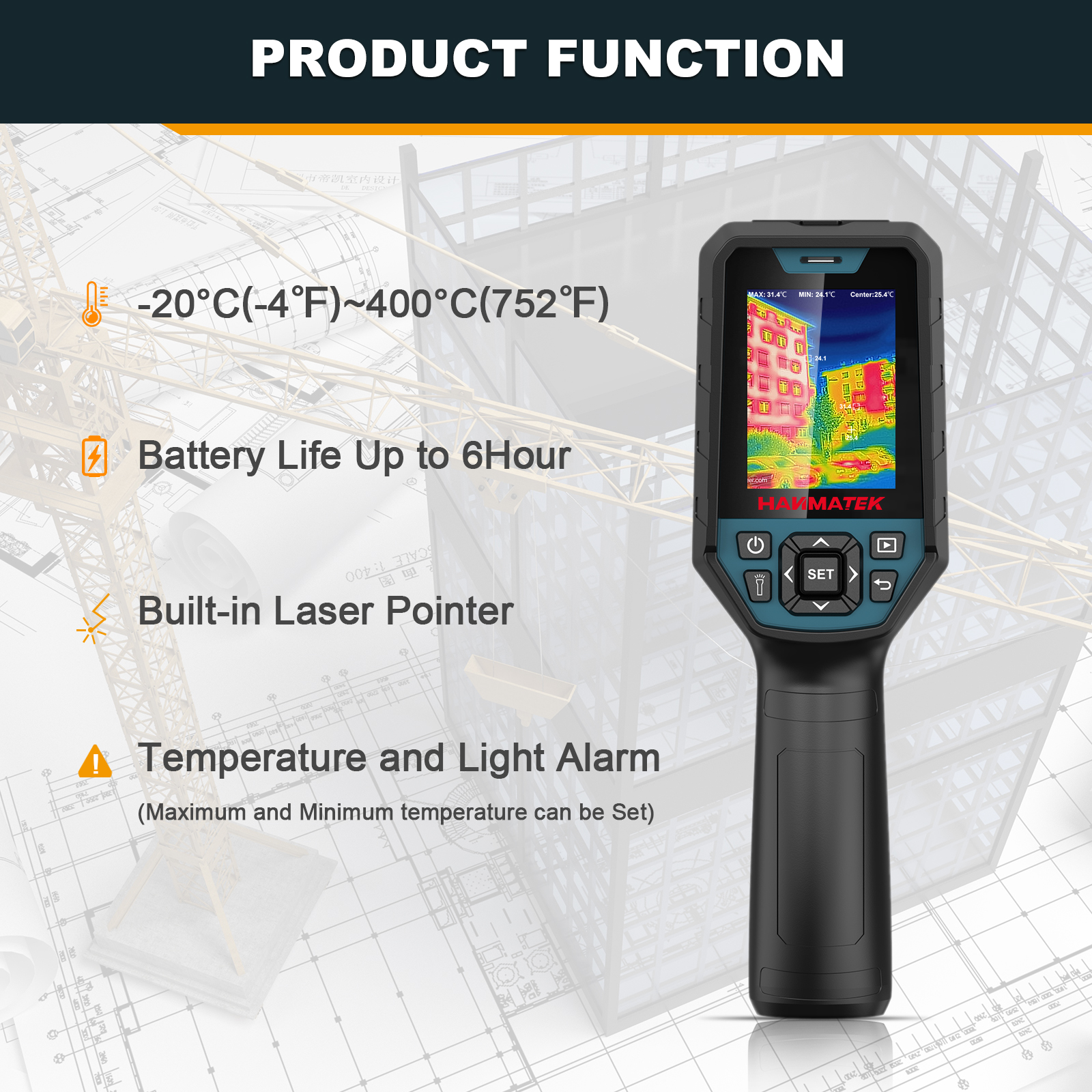

Temperature Range | -20°C ~400°C | |
Accuracy | -10°C ~400°C, accuracy ±2C or 2%; take the maximum value (room temperature 25°C) | |
Resolution | 0.1℃ | |
Emissivity | 0.95 (default) (0.1 ~ 0.99 adjustable) | |
Temperature measurement display | Key area temperature measurement (ROI), centre point temperature measurement, high and low temperature tracking | |

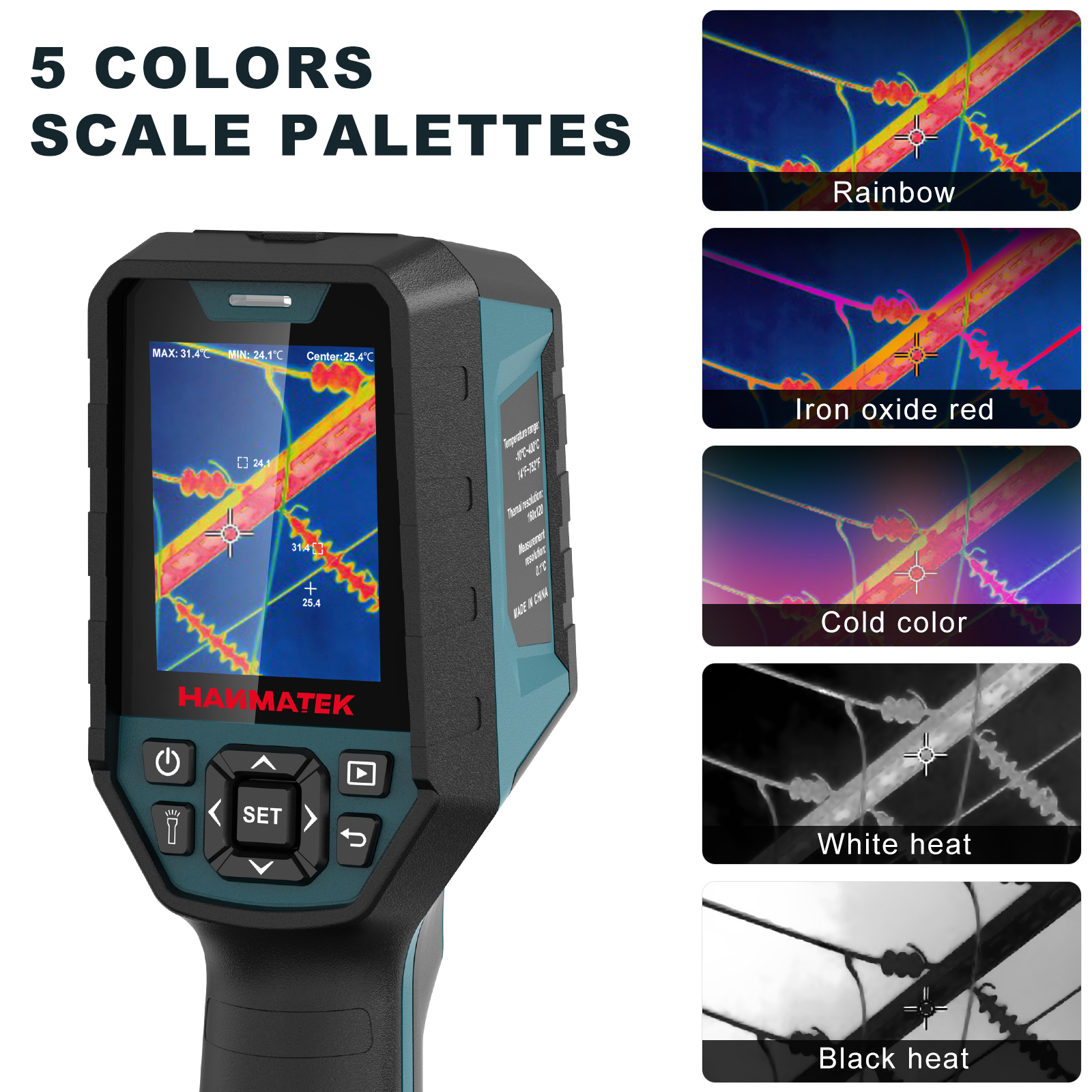

Colour palette | Iron red/rainbow/white heat/black heat/red heat | |
Display type | 2.8” TFT LCD | |
Display resolution | 320*240 | |
Image format | BMP | |
Display Resolution | 320*240 | |
Visible Lens Light | Yes | |

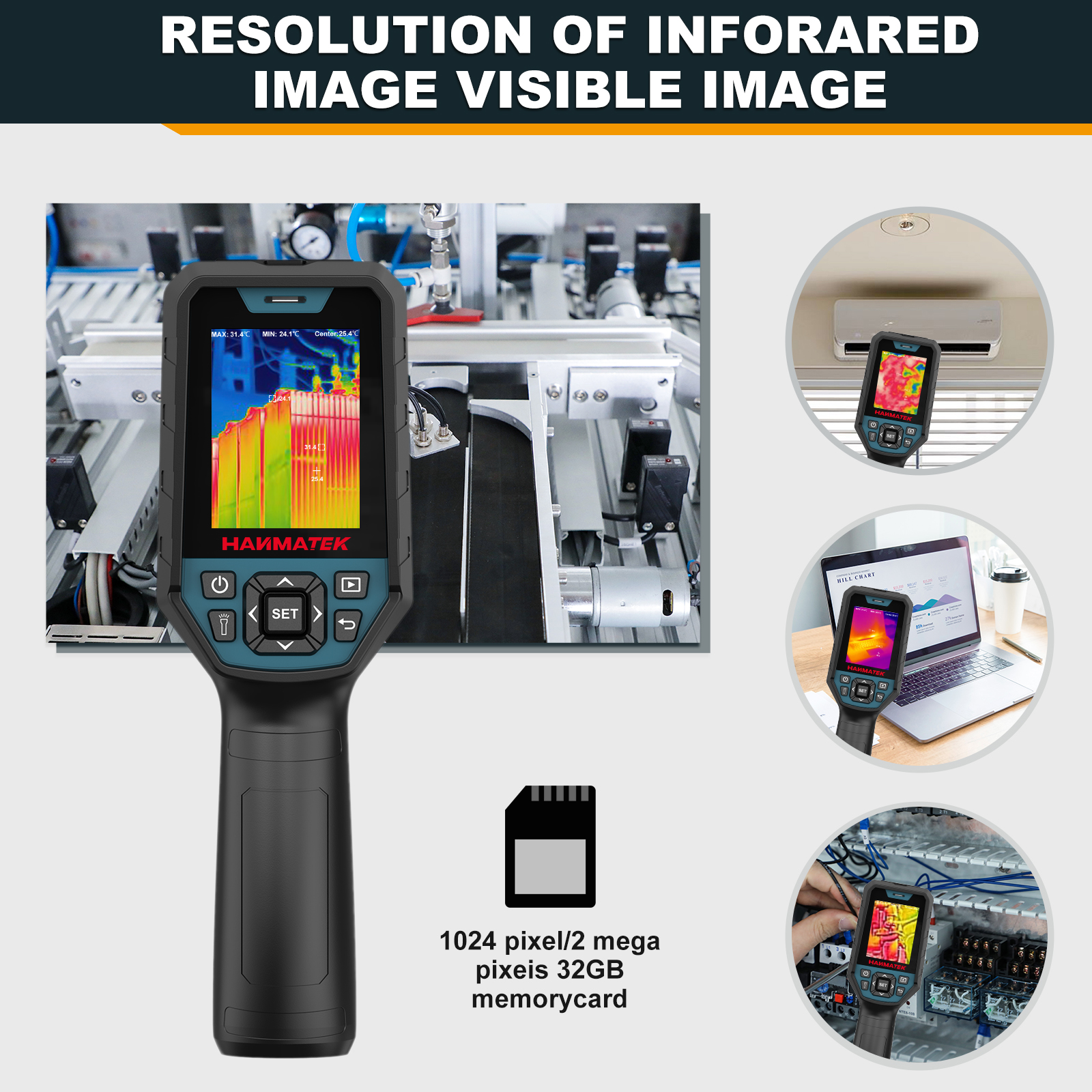

Visible light resolution | 640*480 | |
Field of view (FOV) | 80° | |
Image Mode | Thermal imaging, digital camera (visible light with temperature display), fusion | |
Thermometer Alarm | Image Alarm, LED Alarm, Buzzer Alarm | |
PC analysis software | Yes | |
Data Communication | Type-C USB | |
Battery Li-ion | Li-ion 3.7V/5000mAh | |
Usage time | ≤ 6 hours | |
Charging time | ≤5 hours | |
Charging voltage/current | 5V/2A | |
Image storage Micro | Micro 32G SD card | |
Operating Temperature | 0~50℃(32~140℉) | |
Product Size | 65*75*225mm | |
Package Size | 157*90*300mm | |
Weight | 0.82KG | |

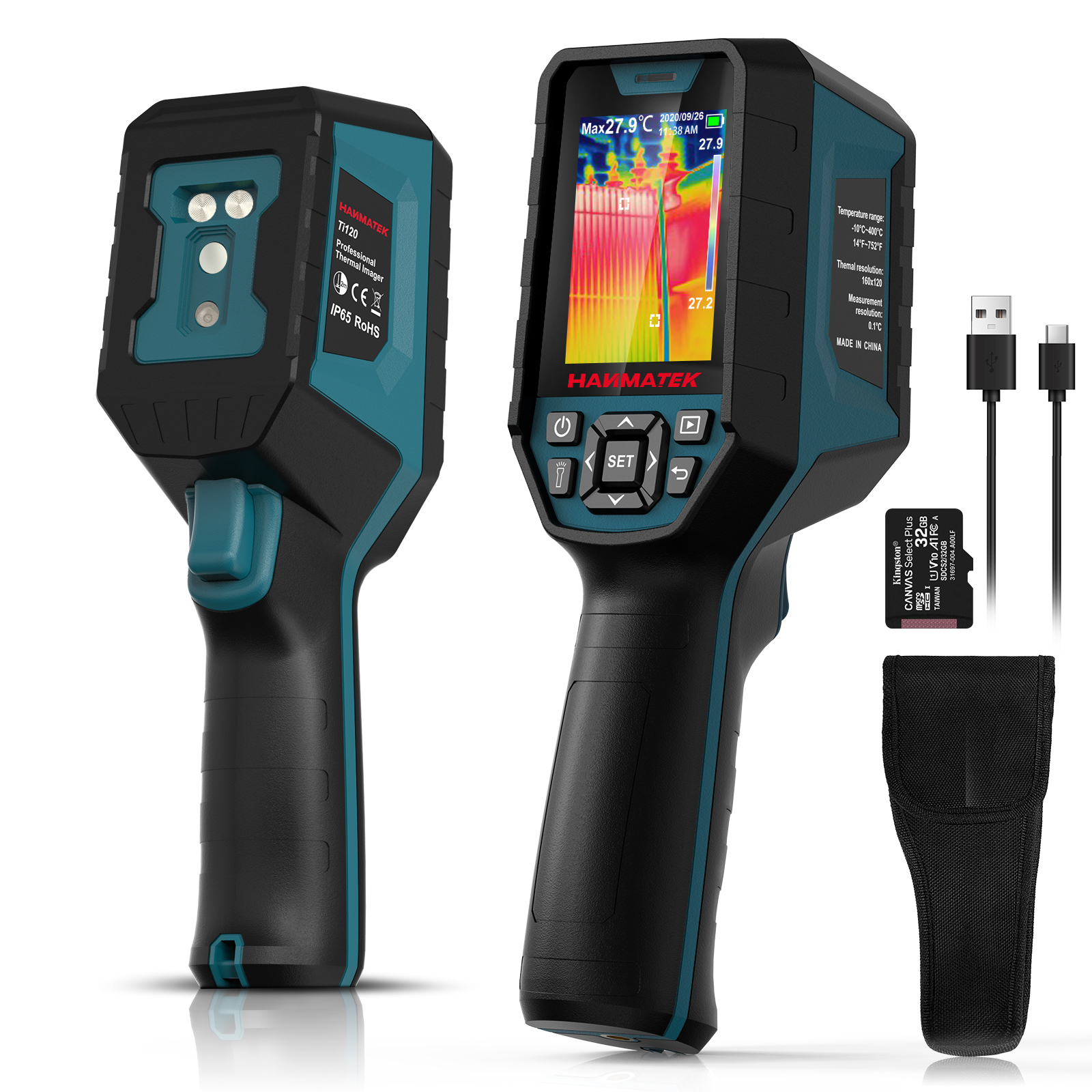

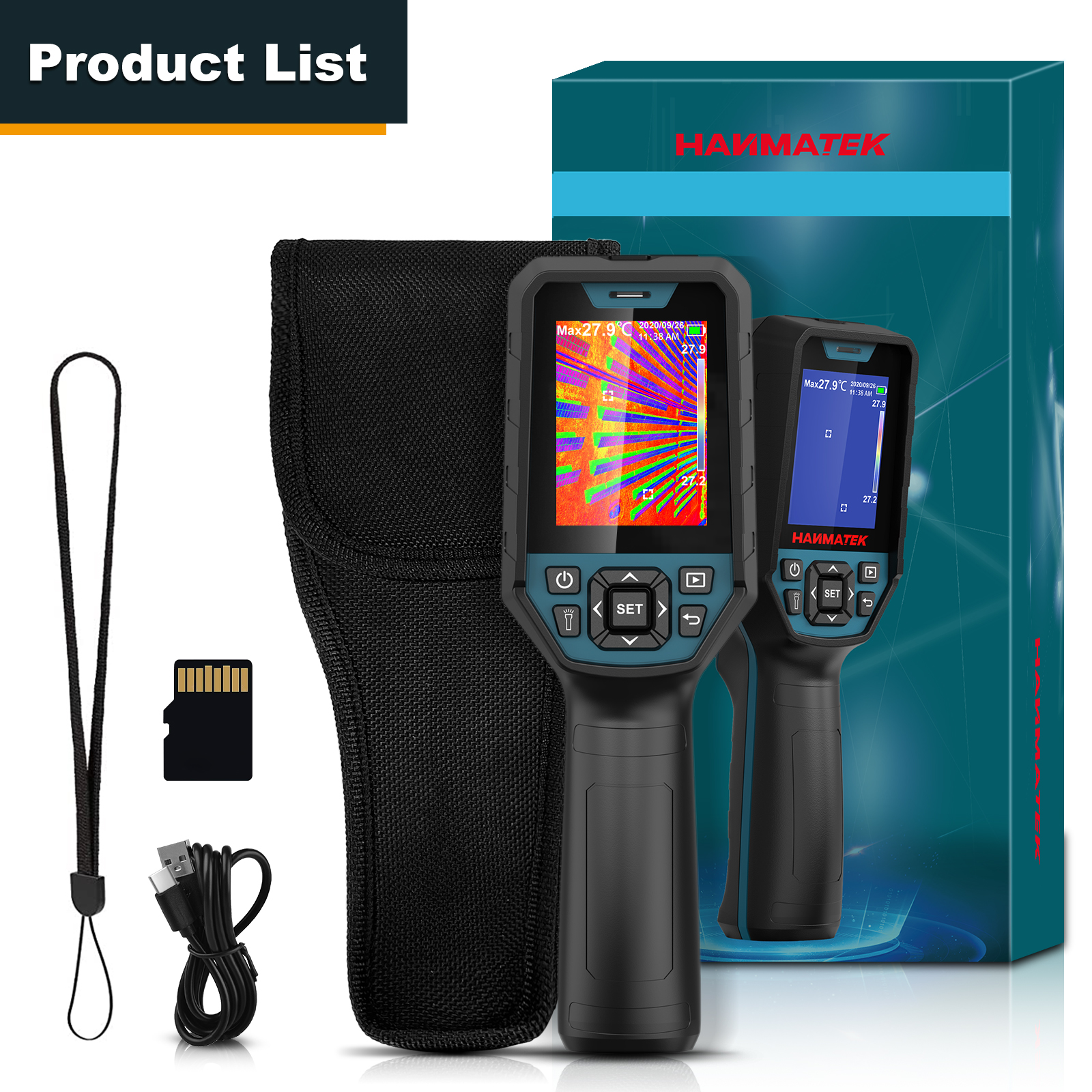

Package Accessories | Tpye-c cable, Micro 32G SD card, lanyard, cloth bag, manual, colour box. |
