◈ Current Measurement
◈ Capacitance measurement
◈Automatic judgement of measurement parameters (AC voltage, DC voltage, resistance, diode on-off)
◈ Diode and on-off testing

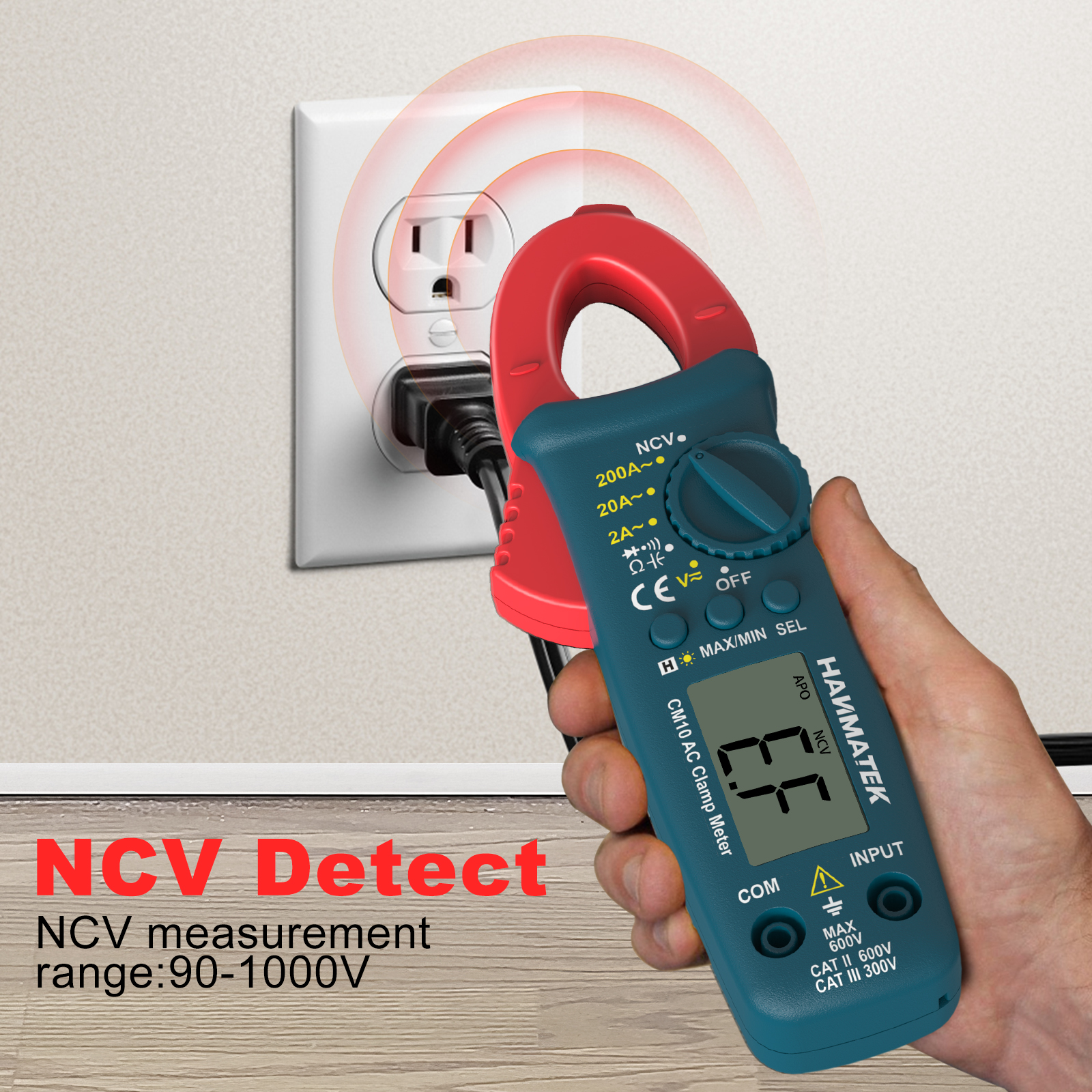

◈ Non-contact voltage test NCV
◈SEL selection button
◈Frequency measurement
◈Data hold
◈Automatic shutdown

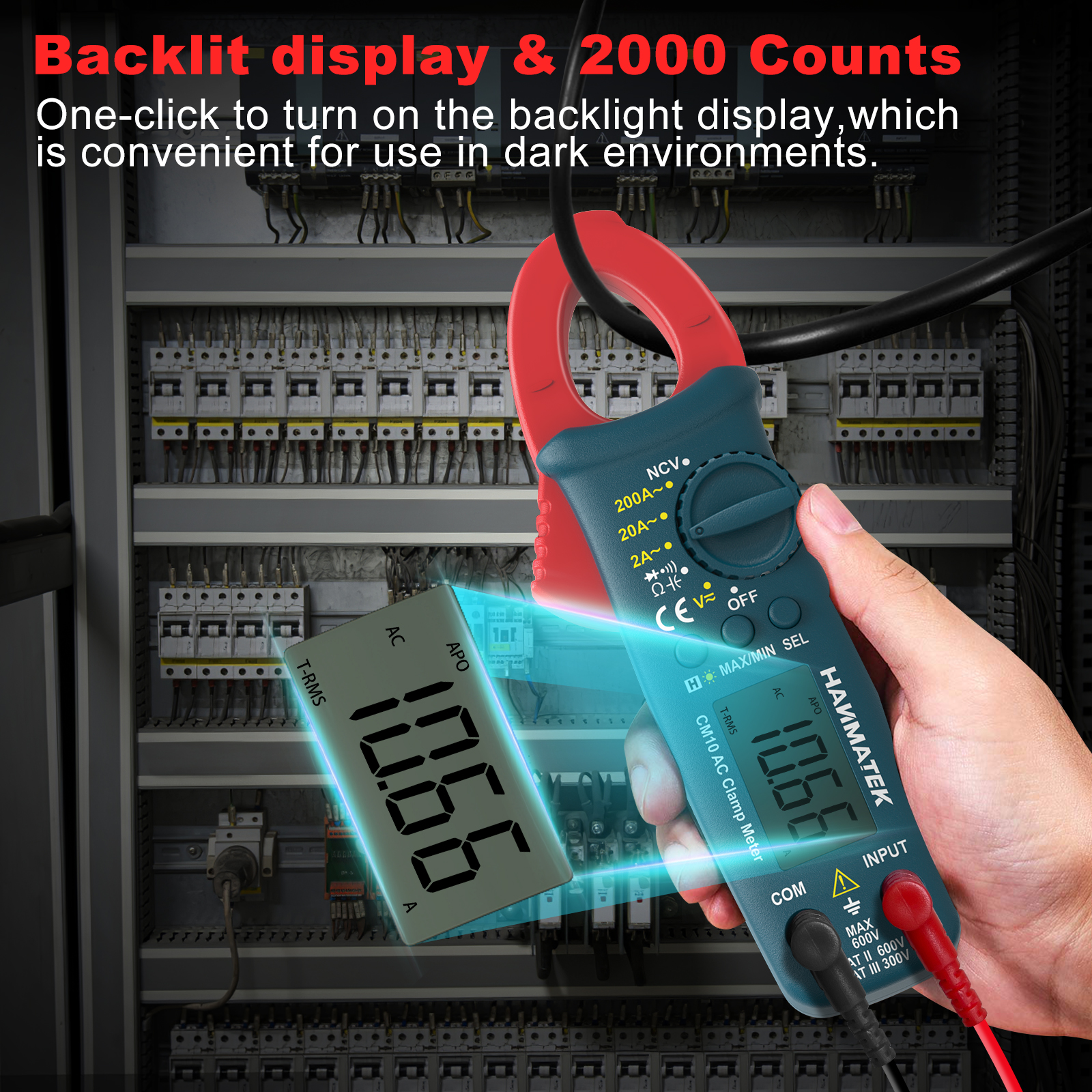

◈Backlit display
DC Voltage
roduct Technical Parameters | ||
Model | CM10 | |
0-600V | ±1.0% | |
AC Voltage | 0-600V | ±1.2% |
AC Current | 2-20-200A | ±2.0% |
Resistance | 100Ω-2K-20K-200K-2M-20MΩ | ±1.0% |
Capacitance | 20n-200n-20u-200u-2mF-20mF | ±4.0% |
Capacitance | √ | |
Overload protection | √ | |
Continuity Buzzer Test | √ | |
Diode test | √ | |
Data Hold | √ | |
Backlight | √ | |
True RMS test | √ | |
NCV | √ | |
Auto Scope | √ | |
Product Size | 107*60*35mm | |
Package Size | 195*105*45mm | |
Weight | 0.295KG | |

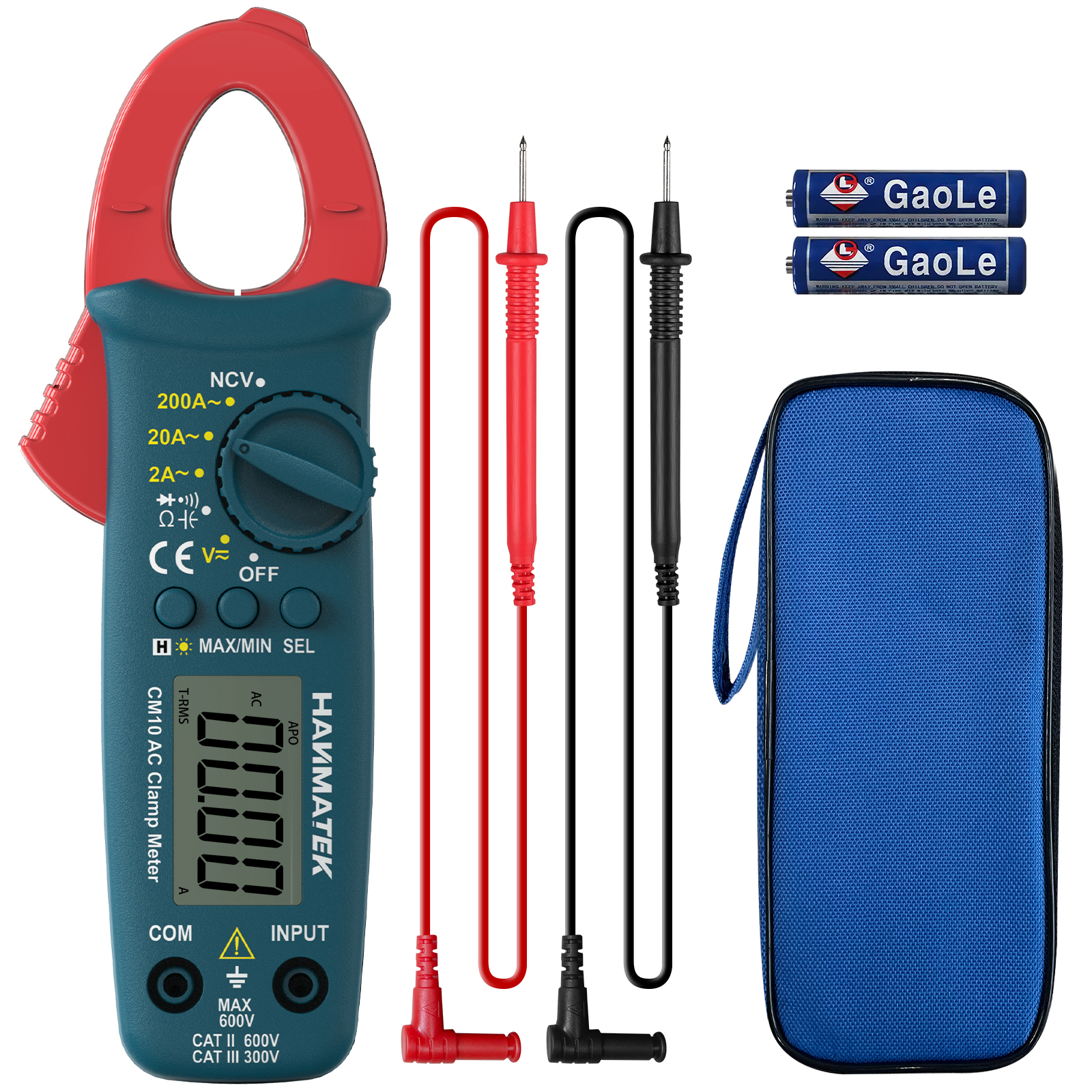

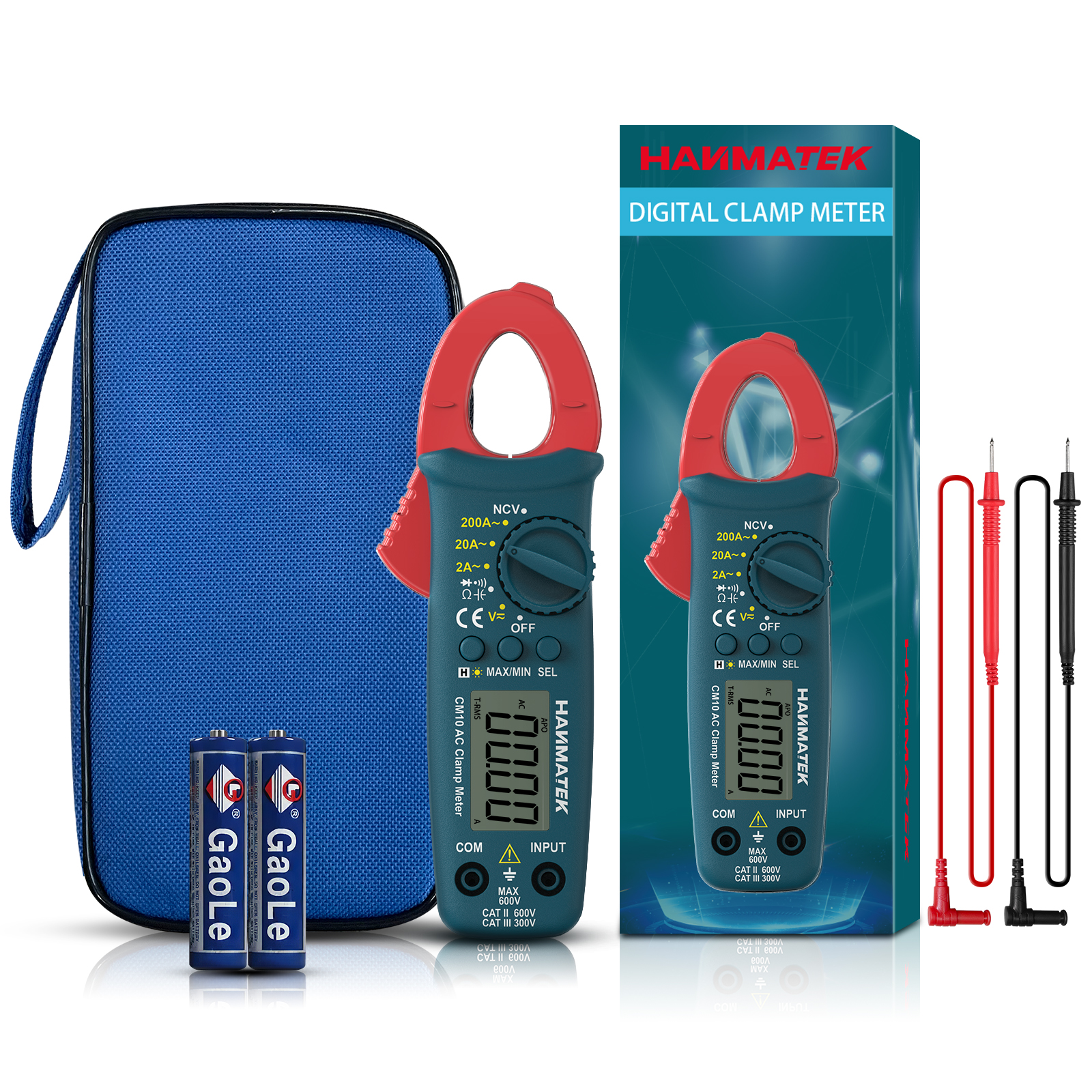

Packing accessories: | test pen, cloth bag, manual, 2 x 1.5V AAA batteries, colour box. |
