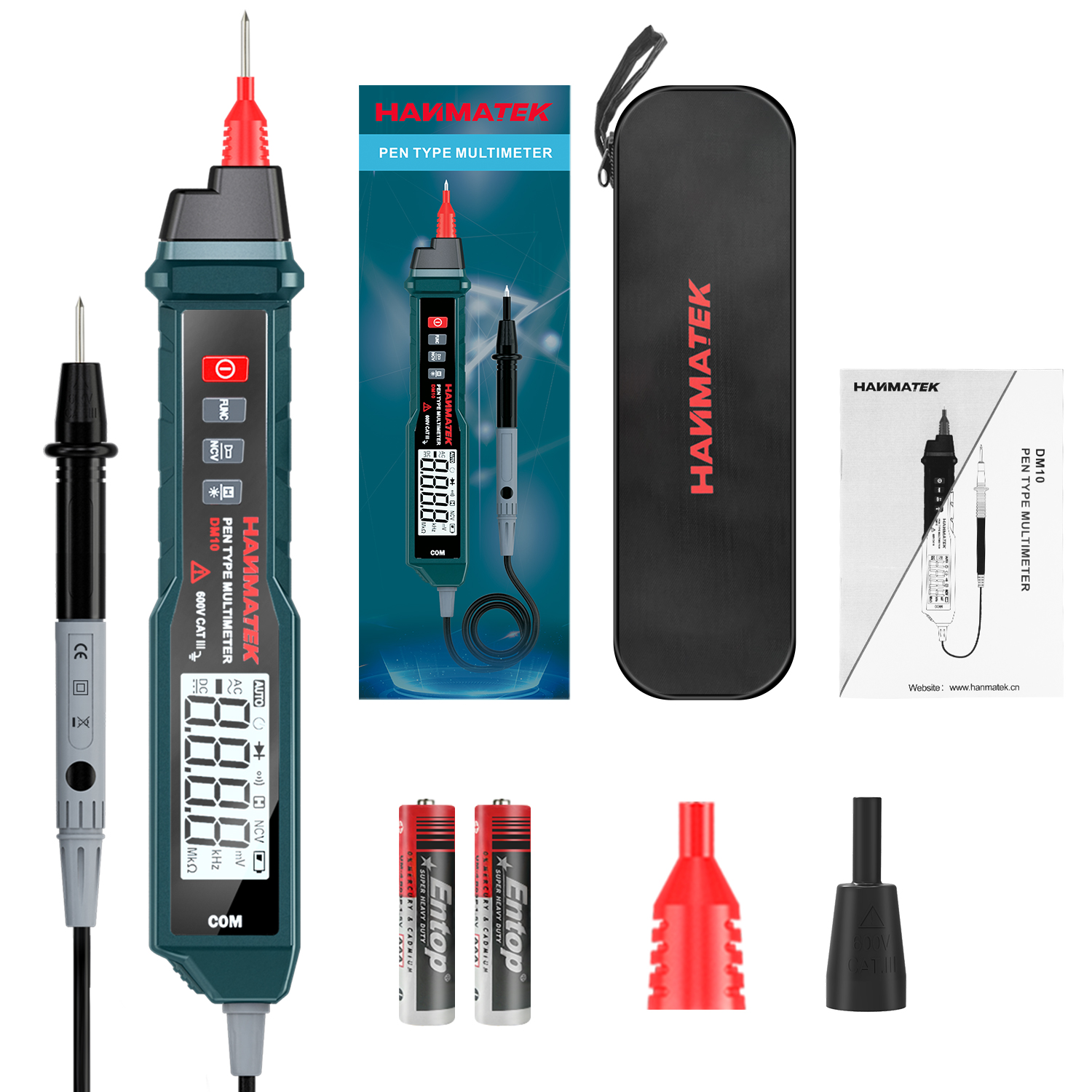

Pen Type Multimeter DM10
| 1 | 1999 count |
| 2 | Pen type |
| 3 | Automatically judge measurement parameters (AC voltage, DC voltage, resistance, diode on and off) |
| 4 | High precision |
| 5 | Auto range |
| 6 | Non-contact voltage test NCV |
| 7 | Low power consumption |
| 8 | Frequency measurement |
| 9 | Data retention |
| 10 | Automatic shut-down |
| 11 | LCD backlight |
| 12 | flashlight |
Description
| Button | Power button | ||
| Function selection key | |||
| Flashlight key/NCV test key | |||
| Data hold key/backlight key | |||
| Range | Resolution | Accuracy | |
| DC voltage | 2V | 0.001V | ±(0.5% reading + 3 digits) |
| 20V | 0.01V | ||
| 200V | 0.1V | ||
| 600V | 1V | ±(0.8% reading + 5 digits) | |
| DC voltage | 2V | 0.001V | ±(0.8% reading + 3 digits) |
| 20V | 0.01V | ||
| 200V | 0.1V | ||
| 600V | 1V | ±(0.5% reading + 5 digits) | |
| Resistance | 200Ω | 0.1Ω | ±(1.0% reading + 35 digits) |
| 2kΩ | 0.001kΩ | ||
| 20kΩ | 0.01kΩ | ||
| 200kΩ | 0.1kΩ | ||
| 2MΩ | 0.001NΩ | ||
| 20MΩ | 0.01MΩ | ±(1.2% reading + 15 digits) | |
| Continuity test | <50Ω | ||
| Frequency | 9.999MHz | ±(1% reading + 3 digits) | |
| Diode | 3V | 0.001V | |
